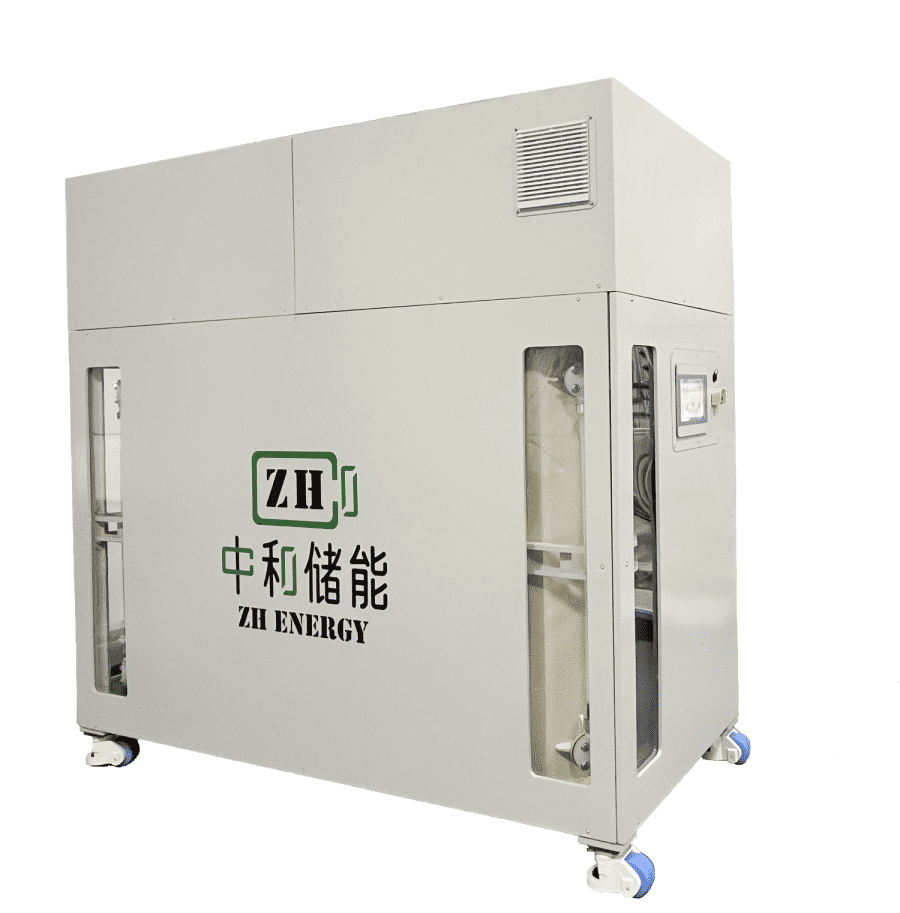

5kW/20kWh Mobile VRFB Energy Storage System
The product has no risk of combustion or explosion. It features modular deployment, a simple system structure, and is easy to disassemble, assemble and upgrade. It has good expandability and can be connected with power sources such as photovoltaic and charging piles as well as load equipment for operation. It can meet the application scenarios of household energy storage, save comprehensive investment costs and reduce users' electricity costs.
| 5kW/20kWh Specifications and Parameters of Mobile Energy Storage Systems | |||
|---|---|---|---|
| Rated power | 5kW | ||
| Rated capacity | 20kWh | ||
| System efficiency | DC≥80% | ||
| System dimensions | 2.0×1.0×2.0m (W*D*H) | ||
| Protection level | IP54 | ||
| Optimal operating temperature | 20-40℃ | ||
| Voltage range | 50-80V | ||
| Maximum current | 112A | ||
| Life cycles | ≥15000 | ||
| System weight | 3t | ||
| Working Environment humidity | 5-95%(不结露) | ||

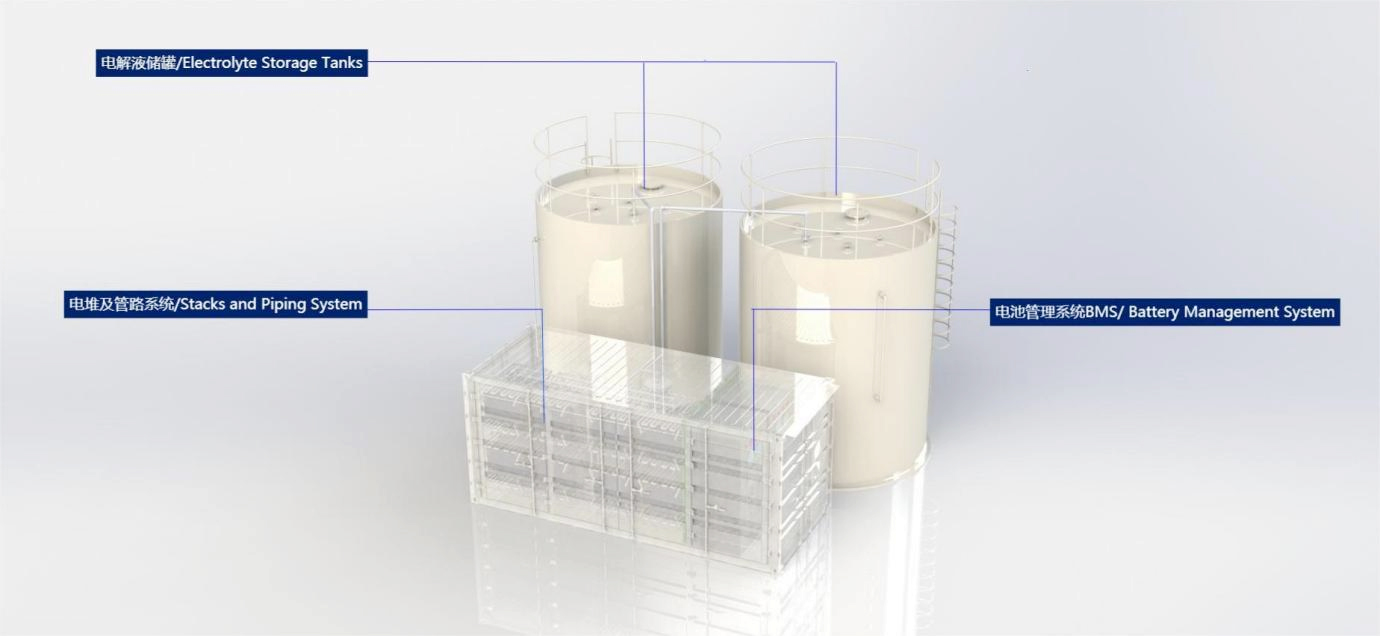

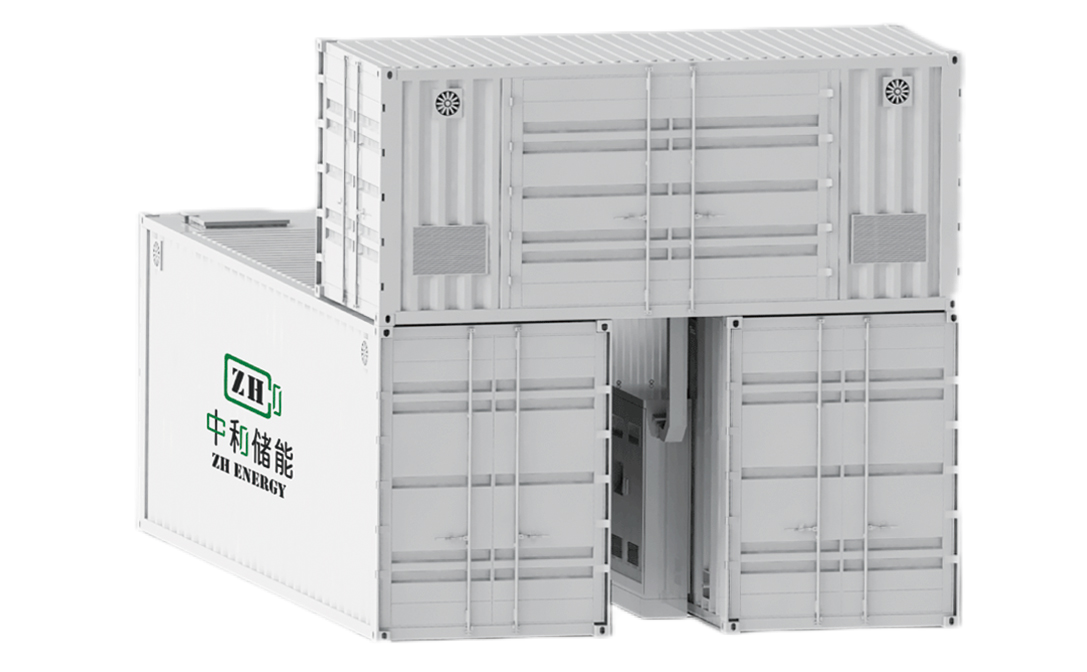

250kW、375kW VRFB Energy Storage Modules
| Specification Parameter | |||
|---|---|---|---|
| Rated power | 250kW | 375kW | |
| Maximum current | 720A | 1066A | |
| System dimensions |
Containerized:9x6x6m (L*W*H) Tank Storage:10x4x7m(L*W*H) |
Containerized:12x6x6m (L*W*H) Tank Storage:10x4x8m (L*W*H) |
|
| Rated capacity | 1000kWh | 1500kWh | |
| System weight | Containerized:95t Tank Storage:90t |
Containerized:125t Tank Storage:120t |
|
| Output voltage | 400VAC | ||
| DC voltage | 352-562V | ||
| Ambient Temperature | -35~50℃ | ||
| Life cycles | 20years，>15000cycles | ||
| Protection level | IP54 | ||
| System efficiency | AC≥70% | ||
| Optimal operating temperature | 0~30℃ | ||
| Working environment humidity | 5~95%（non-condensing） | ||
| Communication interface | Modbus-TCP | ||

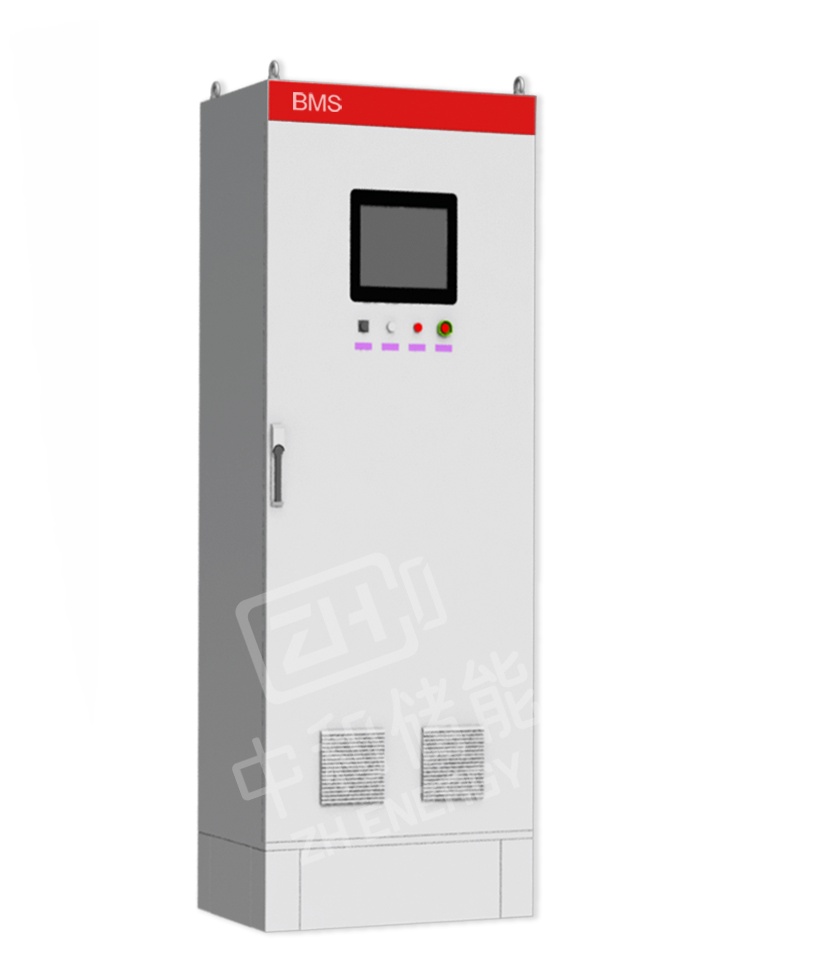

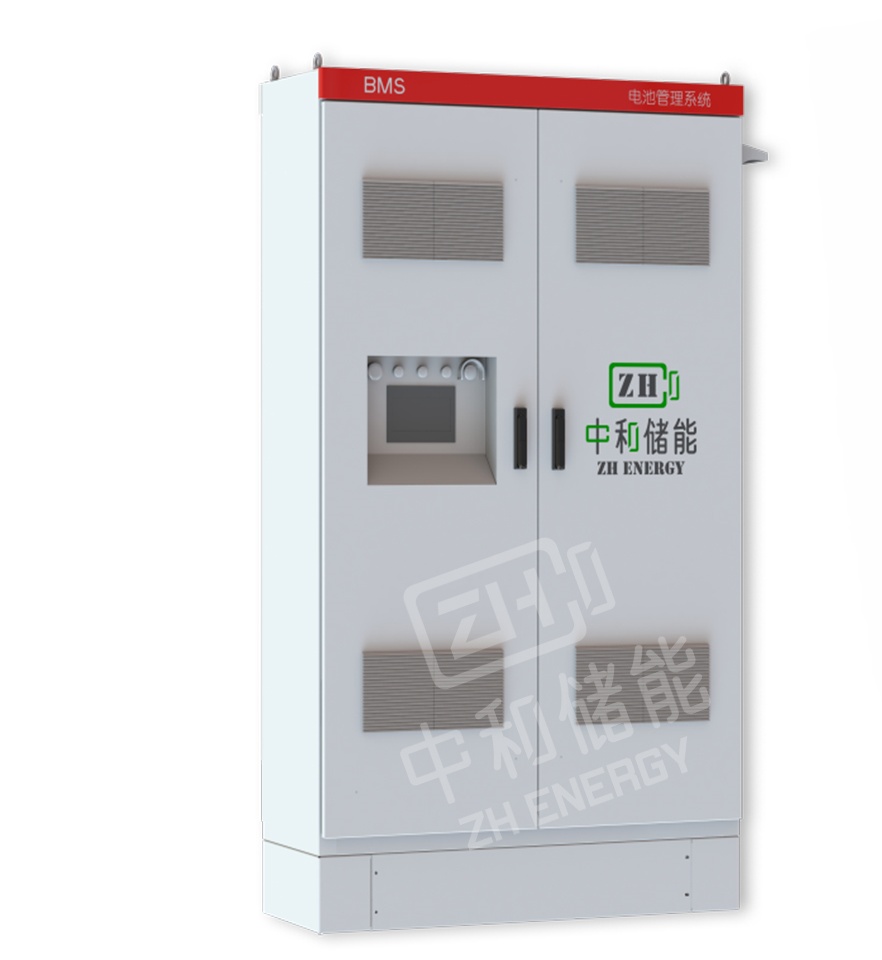

Battery Management System
ZH Energy flow battery management system (FBMS) covers all monitoring, calculation, and control functions of the flow battery system， It is suitable for various flow battery technologies ，and can be customized for to meet customer needs，The standard models are available in 250kW and 500kW.
| Standard Model Parameters | ||
|---|---|---|
| Rated power | 250kW | 500kW |
| System dimensions | 500×1260×2200mm（L*W*H） | 500×1800×2200mm（L*W*H） |
| Rated Current | 63A | 100A |
| Rated Voltage | AC 380V | |
| Frequency | 50Hz | |
| Insulation Class | Class F (High-temperature resistant, Arc-resistant) | |
| Protection level | IP54 | |
| Ambient Temperature | -15～40℃ | |
| Color | RAL 7035 | |
| Opening Method | Front double doors open, rear door fixed | |
| Internal Layout | Power area, control area, wiring area, etc. | |
| Cabinet Material | High-quality cold-rolled steel plate, with high strength and corrosion resistance. | |
| Relative Humidity | Ambient Temperature≥40℃，Humidity≤50％RH，20℃，Humidity≤90％RH | |
