ZH Energy offers a full range of LAB products, including single cells, multi-channel test benches, stacks, and testing platforms. These solutions cover the entire process from laboratory fundamental research to industrial engineering validation, providing a one-stop solution for technology development and product scale-up.

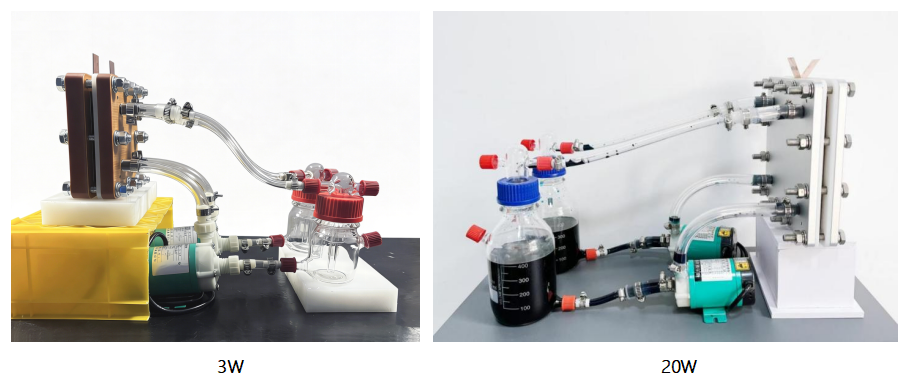

Single-cell System

A compact modular flow battery system, suitable for universities and research institutions to conduct various studies on flow batteries, can be used for laboratory testing, scientific teaching, mobile exhibition, and other scenarios.

PRODUCT FEATURES

The structure is simple and easy to assemble and disassemble, meeting the frequent assembly and disassembly testing needs of laboratories；

Streamlined flow channels enhance efficiency, resulting in a significant improvement in energy efficiency for single batteries compared to designs without optimized flow channels；

Available in various specifications to meet experimental needs for different power requirements.

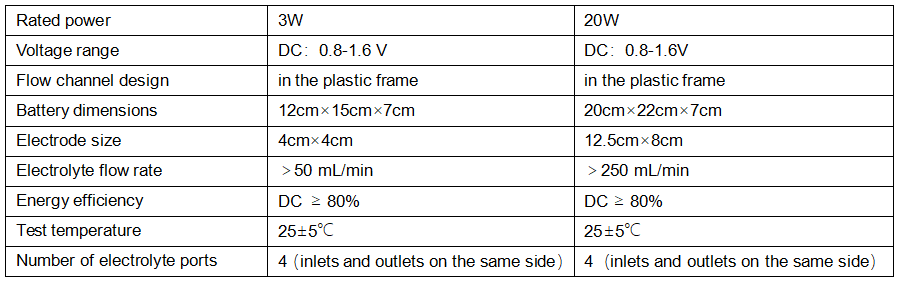

SPECIFICATION

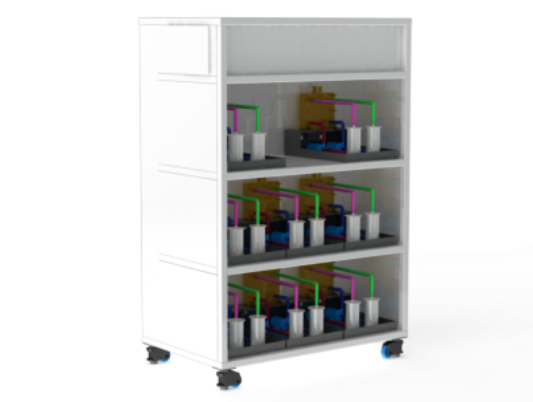

Multichannel Flow Battery Single Cell Test Bench

The Multichannel Flow Battery Single Cell Test Bench (standard configuration: 8 channels, optional: 3 or 6 channels) is specially designed for flow battery research. It enables efficient parallel experiments, and is applicable to the performance testing and research of core materials such as electrolytes and membranes as well as flow field structures. It integrates data acquisition and analysis functions.

This equipment can accurately collect and output complete experimental data including Energy Efficiency (EE), Coulombic Efficiency (CE) and charge-discharge capacity. It provides support for material screening and performance optimization, and serves as a core experimental device for universities, research institutes and corporate R&D centers.

PRODUCT FEATURES

Efficiency Improvement: Supports simultaneous parallel experiments to significantly shorten the research cycle.

Reliable Data: Parallel testing under the same conditions reduces systematic errors and enhances data comparability.

Research-oriented Compatibility：Accurately collects key data such as EE and CE to provide strong support for material screening and performance optimization.

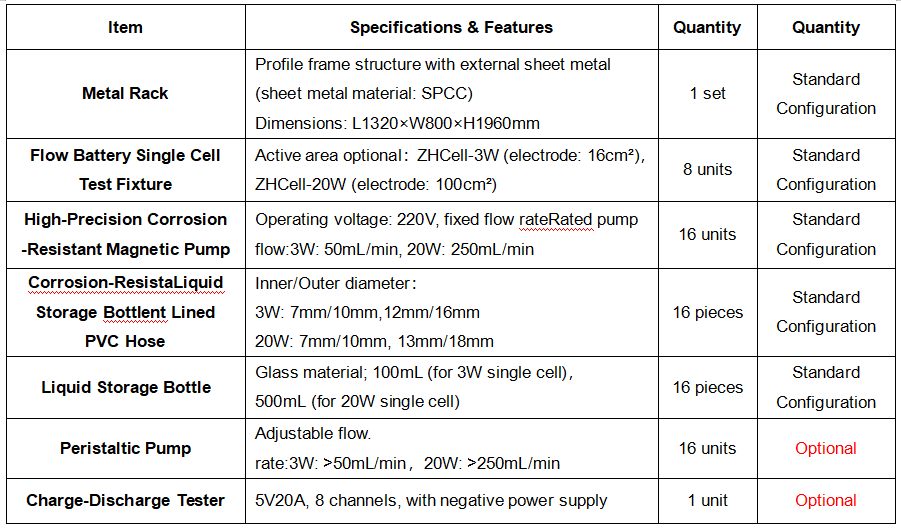

ITEMS INCLUDED

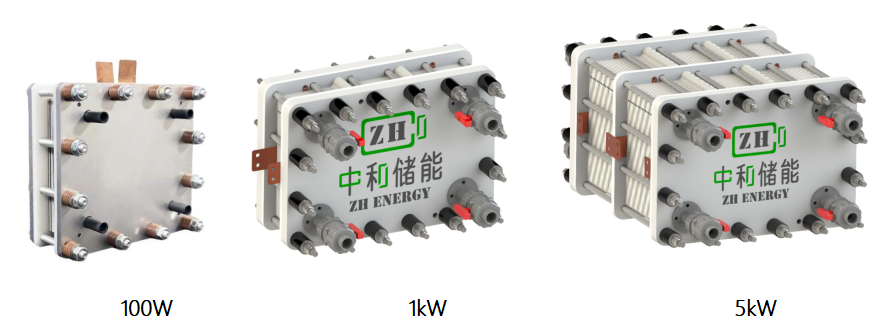

Laboratory Stacks

Stacks are the core component of the flow battery energy storage system, where the electrolyte undergoes electrochemical reactions to achieve charging and discharging, determining the power level of the system. Flow batteries have the characteristic of decoupling power and capacity because they store the electrolyte outside the reaction stack: the stack determines the power of the battery, while the amount of electrolyte determines the capacity. It is suitable for research institutions and manufacturers to test flow battery materials or systems.

PRODUCT FEATURES

High performance: Featuring a structural design adopted from large commercial battery stacks, with flow channels that have been thoroughly optimized and validated through engineering, the energy efficiency exceeds 80% under a power density of 200mW/cm²；

Consistency: Manufactured on a mechanized production line, the standardized production process has obtained ISO9001 international quality management system certification；

Diversity in specifications: The standard models are 1kW and 5kW, with the option to increase or decrease the number of cells within the 5kW range.

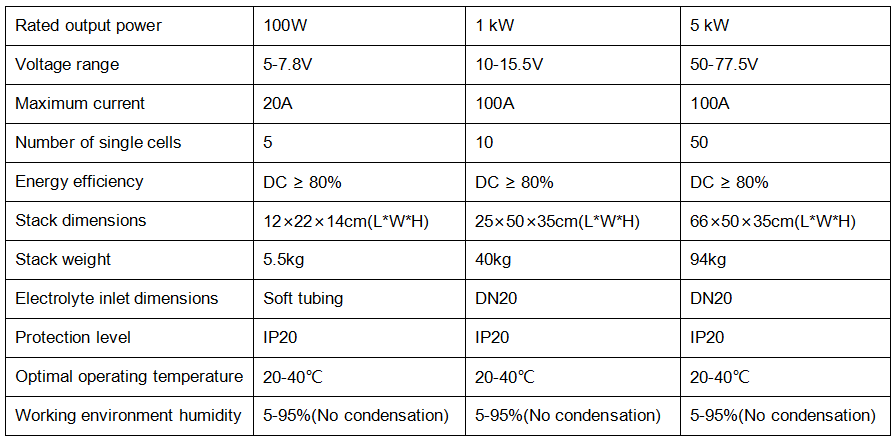

SPECIFICATION

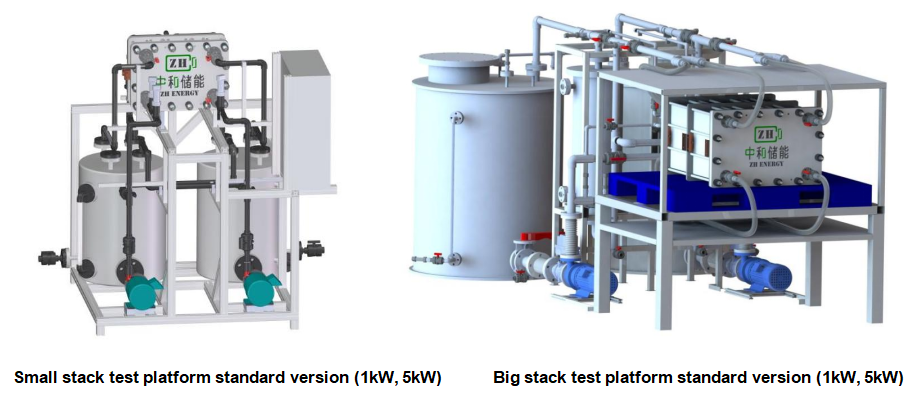

Flow Battery Test Platform

The flow battery test platform is fully functional and contains a variety of monitoring sensors to meet various material or process testing requirements. The platform adopts modular design, easy disassembly and assembly, and is suitable for research institutions and manufacturers to test flow battery materials, stacks or systems.

PRODUCT FEATURES

Good Repeatability: Simple structure , easy to disassemble and move, and can meet the experimental needs of frequent disassembly;

Good Consistency: The modular design ensures standardized assembly and the production process has been certified by ISO9001 International Quality Management System;

Diverse Specifications: small platforms can meet the testing needs of 1-5kW/2h, while large platforms can meet the testing needs of 10-50kW/2h, and can be customized according to customer needs.

SPECIFICATION

Currently, ZH Energy’s Lab series testing solutions have been exported to more than ten countries, including China, the United States, the United Kingdom, Italy, and Canada. The products have received strong customer recognition, with multiple repeat orders and long-term strategic partnerships established with some clients.

The series has successfully supported a wide range of flow battery systems, including vanadium, iron–sulfur, iron–chromium, zinc–iron, all-iron, and organic flow batteries. It serves hundreds of enterprises, universities, and research institutions, and is widely used for testing and validation of key components such as membrane materials, electrolytes, electrodes, BMS, stacks, and system integration.

With high reliability and strong technical expertise, the products have gained broad recognition within the industry. For testing requirements related to additional flow battery technologies, customized solutions are welcome upon inquiry.
